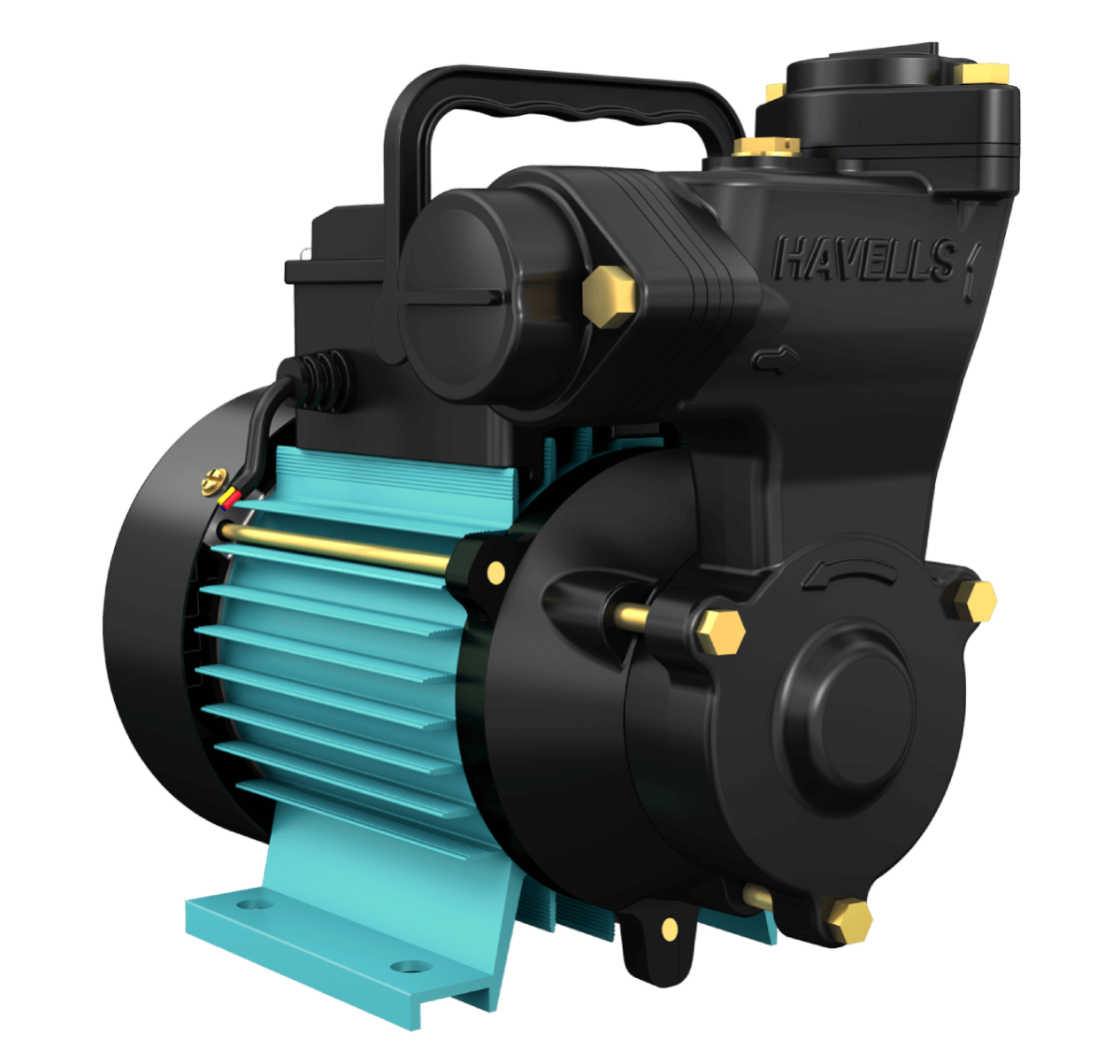

HAVELLS PUMP Sagar 1

( 0 Reviews )

₹5,000 ~~₹5,460~~

Inc. Tax: ₹5,000 (GST: 18%)

Capacity / Power

0.75 kW (1.0 HP)

Energy Efficient Motor

Motors are with F Class Insulation, which ensures that motor does't get burned and works smoothly even at high temperatures.

Pump Performance

Higher performance of the pumps. Pumps have higher suction power and give high discharge in its operating range.

Warranty

1 Year

Delivery

Year

WARRANTY

GUARANTEE

CASH

DELIVERY

YearS

REPLACEMENT

Seller

8MD5 |

See other sellers

Technical Specification

Sales Package (s)

Net contents	1 N pumpset, 1 N instruction manual, 1 N warranty card, 1 N Strainer

basic features

applications	Water transfer for Apartments, bungalows, farm-houses, building construction, gardening, fountains, overhead storage tanks, pressure booster systems, hotels, hospitals, industrial water circulation
high suction with self priming	up to 7.5 m
low power consumption	Yes
Maximum working pressure	3.3 kg / cm²
operating water temperature	Ambient temperature
suitable for	Single Phase supply

dimensions and weight

Cable length and Size	0.3 m & 1.0 sq. mm

dimensions weight

packaging dimensions WxHxD	28 cm x 18.5 cm x 24.5 cm
gross weight	8.4 kg

accessories

power supply cable	Yes

motor features

direction of rotating	Anti-clockwise when viewed from driving end
dynamically balanced rotor	Yes
motor body	High-quality Extruded aluminium body
motor speed	2900 Revolution per minute
motor stator	CRC Prossed grade stampings
pipe size	25 mm x 25 mm (2.5 cm x 2.5 cm)
winding type	Copper winding

power details

power	1.0 HP
rated frequency	50 Hz
rated power input	0.75 kW
voltage operating range	180 V to 260 V

pump features

pump casing	Cast iron
impeller	Forged brass
shaft	C45 (EN8)

discharge in litre hour at various heights

6 metre in L / h	2700 L / h
